I have two sites, and one that has only 3 devices is showing a load of 40-50%
my other site with 100 devices on it shows .2-3%
What would cause such a high load usage?
Is there any device visible from the controller at that site that seems to be generating a lot of network traffic? Also, connecting to the terminal by shift+clicking on the router’s name and running the command top should give a bit more detail on what might be going on
unfortunately there are no devices that are showing large amounts of traffic. There are only 5 devices and nothing custom set up
Hmm, did we try running the command I mentioned as well?
I’ll ask the obvious question - did you accidentally turn off acceleration?
Yes. The top two or three lines of top would likely tell us what might be happening.
What about settings for upload/download limit (CAKE)?
Also, have you tried unplugging wired devices, one by one, to see if something changes?

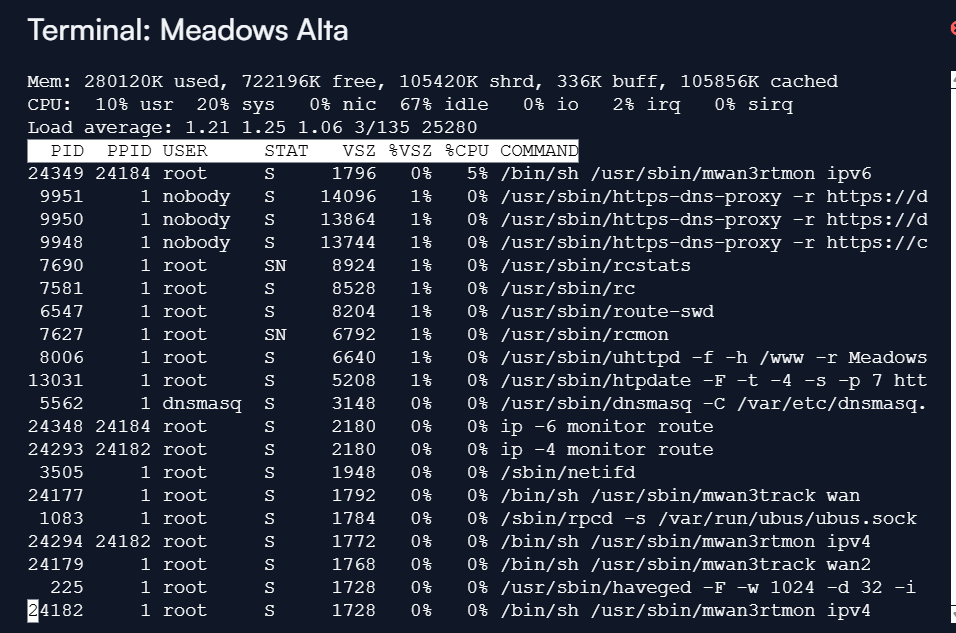

The output from top sums to 30% but only 5% is accounted for by the shown entries…so it would be interesting to see where the remaining 25% comes from. Some hidden process or processes running berserk?!
My Route10 is running on something like 0.5-1.5 % on idle with around 40-50 devices on the network and one SPF port and all but one Ethernet port used. I have acceleration disabled and CAKE set to some appropriate values, so once I push it with speedtest, or other high bandwidth usage, the CPU spikes at much higher values, like something around 50%.
I have both up/down set to none, I have not attempted to unplug devices, but I will try that next time im on that site.
I am confused because my other site uses next nothing and has over 100 devices, but the site with 5 devices shows the high cpu ad ram use
Yeah, it’s definitely a bit of a puzzler!
Couple of other things I could think of doing:
- Double check any settings like IDS/IPS and test out turning them off if they are on. Just for the sake of simplifying what’s running.
- Check the system log in the router and see if it’s reporting any strange activity. Easiest way remotely would probably be to go to the terminal again and run
cat /var/log/messages. - Since top reported 20% system CPU usage, we might have more luck with the command

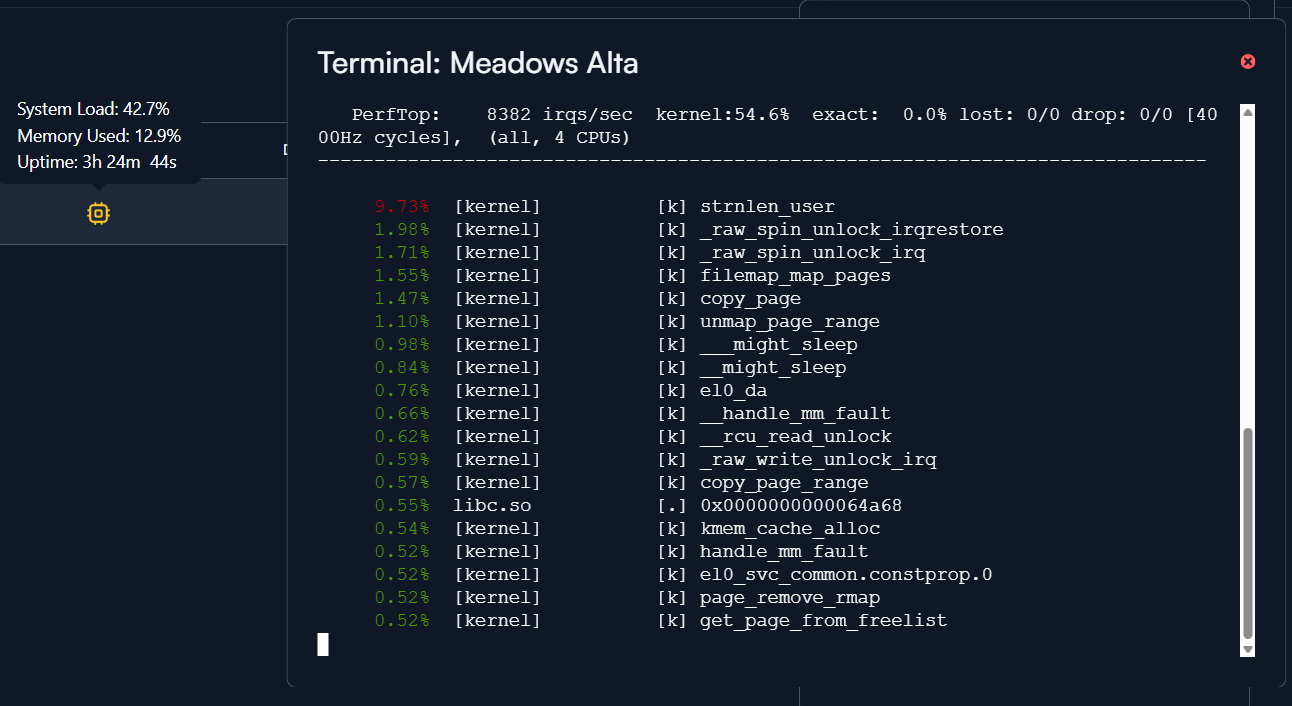

perf top. I just found out it’s in the router and might shed some more light on that system CPU usage
here are the things you requested, i must be honest i do not have much experience in these types of situations. but i can follow directions well enough
Thanks for your help and input
Hey, here’s hoping we find something that might explain what you’re seeing. I’m not exactly a master of working from the terminal myself, but I have a little prior experience at pulling information for troubleshooting out of Linux devices like the Route10.

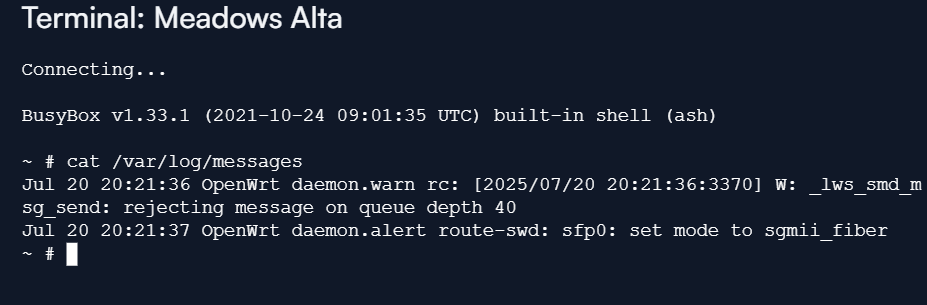

That screenshot of the messages seems pretty short. I usually see a lot more messages in the log if the router has been up for any length of time. Think you could run the command dmesg next? That should spit out something kinda long but you should be able to select the text then copy and paste it. Using the Preformatted Text button (</>) should help keep the text looking neat and readable.
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0414] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0417] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0417] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0419] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0419] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0421] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0421] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0423] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0423] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0425] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0425] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0427] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0427] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0429] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0429] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0430] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0430] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0433] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0433] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0434] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0434] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0436] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:09:59 OpenWrt daemon.warn rc: [2025/07/20 21:09:59:0437] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:05 OpenWrt daemon.warn rc: [2025/07/20 21:10:05:0653] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:05 OpenWrt daemon.warn rc: [2025/07/20 21:10:05:0653] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:05 OpenWrt daemon.warn rc: [2025/07/20 21:10:05:0656] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:05 OpenWrt daemon.warn rc: [2025/07/20 21:10:05:0656] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:3802] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:3803] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8615] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8616] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8617] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8618] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8620] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8621] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8622] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8622] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8624] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8624] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8626] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:06 OpenWrt daemon.warn rc: [2025/07/20 21:10:06:8626] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:07 OpenWrt daemon.warn rc: [2025/07/20 21:10:07:0631] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:07 OpenWrt daemon.warn rc: [2025/07/20 21:10:07:0632] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:08 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:10:08 OpenWrt daemon.warn rc: [2025/07/20 21:10:08:8933] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:08 OpenWrt daemon.warn rc: [2025/07/20 21:10:08:8934] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:09 OpenWrt daemon.warn rc: [2025/07/20 21:10:09:8532] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:09 OpenWrt daemon.warn rc: [2025/07/20 21:10:09:8533] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:09 OpenWrt daemon.warn rc: [2025/07/20 21:10:09:8534] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:09 OpenWrt daemon.warn rc: [2025/07/20 21:10:09:8535] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0570] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0570] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0572] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0572] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0574] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0575] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0576] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0576] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0578] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0579] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0581] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0581] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0583] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0583] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0584] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0585] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0587] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0587] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0588] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0588] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0591] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:10 OpenWrt daemon.warn rc: [2025/07/20 21:10:10:0591] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:11 OpenWrt daemon.warn rc: [2025/07/20 21:10:11:0771] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:11 OpenWrt daemon.warn rc: [2025/07/20 21:10:11:0771] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:11 OpenWrt daemon.warn rc: [2025/07/20 21:10:11:0773] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:11 OpenWrt daemon.warn rc: [2025/07/20 21:10:11:0773] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:13 OpenWrt daemon.warn rc: [2025/07/20 21:10:13:0614] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:13 OpenWrt daemon.warn rc: [2025/07/20 21:10:13:0615] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:13 OpenWrt daemon.warn rc: [2025/07/20 21:10:13:0617] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:13 OpenWrt daemon.warn rc: [2025/07/20 21:10:13:0617] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:14 OpenWrt daemon.warn rc: [2025/07/20 21:10:14:0454] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:14 OpenWrt daemon.warn rc: [2025/07/20 21:10:14:0454] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:15 OpenWrt daemon.warn rc: [2025/07/20 21:10:15:0465] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:15 OpenWrt daemon.warn rc: [2025/07/20 21:10:15:0466] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:15 OpenWrt daemon.warn rc: [2025/07/20 21:10:15:5981] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:15 OpenWrt daemon.warn rc: [2025/07/20 21:10:15:5982] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7006] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7007] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7009] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7009] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7011] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7011] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7013] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7013] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7014] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7015] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7017] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7017] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7018] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7018] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7021] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7021] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7023] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7023] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7026] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7026] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7028] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7028] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7031] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7031] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7092] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7093] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7096] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:16 OpenWrt daemon.warn rc: [2025/07/20 21:10:16:7097] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8502] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8503] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8506] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8506] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8508] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8508] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8511] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8511] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8513] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8513] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8520] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:17 OpenWrt daemon.warn rc: [2025/07/20 21:10:17:8521] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7037] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7038] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7077] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7078] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7080] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7081] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7082] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:19 OpenWrt daemon.warn rc: [2025/07/20 21:10:19:7083] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:24 OpenWrt daemon.warn rc: [2025/07/20 21:10:24:5525] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:24 OpenWrt daemon.warn rc: [2025/07/20 21:10:24:5525] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:27 OpenWrt daemon.alert route-swd: sfp0: set mode to 10gbase_r
Jul 20 21:10:30 OpenWrt daemon.warn rc: [2025/07/20 21:10:30:4056] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:30 OpenWrt daemon.warn rc: [2025/07/20 21:10:30:4057] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:33 OpenWrt daemon.warn rc: [2025/07/20 21:10:33:5600] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:33 OpenWrt daemon.warn rc: [2025/07/20 21:10:33:5602] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:36 OpenWrt daemon.warn rc: [2025/07/20 21:10:36:7055] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:36 OpenWrt daemon.warn rc: [2025/07/20 21:10:36:7055] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:36 OpenWrt daemon.warn rc: [2025/07/20 21:10:36:7057] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:36 OpenWrt daemon.warn rc: [2025/07/20 21:10:36:7057] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:42 OpenWrt daemon.warn rc: [2025/07/20 21:10:42:0024] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:42 OpenWrt daemon.warn rc: [2025/07/20 21:10:42:0025] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:42 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1316] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1317] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1357] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1359] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1361] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1361] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1364] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:44 OpenWrt daemon.warn rc: [2025/07/20 21:10:44:1365] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0400] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0402] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0405] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0405] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0407] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0407] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0410] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0410] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0412] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:46 OpenWrt daemon.warn rc: [2025/07/20 21:10:46:0412] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4669] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4670] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4672] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4672] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4675] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4675] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4677] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:54 OpenWrt daemon.warn rc: [2025/07/20 21:10:54:4677] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:55 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:10:57 OpenWrt daemon.warn rc: [2025/07/20 21:10:57:2581] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:10:57 OpenWrt daemon.warn rc: [2025/07/20 21:10:57:2585] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:11:11 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:11:31 OpenWrt daemon.alert route-swd: sfp0: set mode to 10gbase_r
Jul 20 21:11:44 OpenWrt daemon.notice netifd: wan26 (20166): cat: write error: Broken pipe
Jul 20 21:11:49 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:11:56 OpenWrt daemon.notice rc: [2025/07/20 21:11:56:8612] N: JSON: {"reqStats":{"start":1753063855,"stop":1753063916,"period":"seconds","clientId":"lvLNz2SBQwEtPvQIGT0X"}}
Jul 20 21:12:00 OpenWrt daemon.notice rc: [2025/07/20 21:12:00:8479] N: JSON: {"reqStats":{"start":1753063859,"stop":1753063920,"period":"seconds","clientId":"lvLNz2SBQwEtPvQIGT0X"}}
Jul 20 21:12:02 OpenWrt daemon.warn rc: [2025/07/20 21:12:02:1677] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:02 OpenWrt daemon.warn rc: [2025/07/20 21:12:02:1678] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:02 OpenWrt daemon.warn rc: [2025/07/20 21:12:02:1680] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:02 OpenWrt daemon.warn rc: [2025/07/20 21:12:02:1681] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:04 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:12:12 OpenWrt daemon.notice rc: [2025/07/20 21:12:12:9273] N: JSON: {"reqStats":{"start":1753063868,"stop":1753063929,"period":"seconds","clientId":"BcbfLgaMiqyRccha9DVA"}}
Jul 20 21:12:13 OpenWrt daemon.warn rc: [2025/07/20 21:12:13:2448] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:13 OpenWrt daemon.warn rc: [2025/07/20 21:12:13:2449] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:13 OpenWrt daemon.warn rc: [2025/07/20 21:12:13:2451] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:13 OpenWrt daemon.warn rc: [2025/07/20 21:12:13:2451] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:17 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:12:20 OpenWrt daemon.notice rc: [2025/07/20 21:12:20:9309] N: JSON: {"reqStats":{"start":1753063876,"stop":1753063937,"period":"seconds","clientId":"BcbfLgaMiqyRccha9DVA"}}
Jul 20 21:12:32 OpenWrt daemon.alert route-swd: sfp0: set mode to 10gbase_r
Jul 20 21:12:48 OpenWrt daemon.notice rc: [2025/07/20 21:12:48:3084] N: JSON: {"stats":120}
Jul 20 21:12:48 OpenWrt daemon.notice rc: [2025/07/20 21:12:48:3390] N: JSON: {"stats":120}
Jul 20 21:12:48 OpenWrt daemon.notice rc: [2025/07/20 21:12:48:3689] N: JSON: {"reqStats":{"start":1753063904,"stop":1753063965,"period":"seconds","clientId":"BcbfLgaMiqyRccha9DVA"}}
Jul 20 21:12:50 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:12:54 OpenWrt daemon.notice rc: [2025/07/20 21:12:54:9668] N: JSON: {"reqStats":{"start":1753063910,"stop":1753063971,"period":"seconds","clientId":"BcbfLgaMiqyRccha9DVA"}}
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9346] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9348] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9350] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9350] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9353] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9354] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9356] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9356] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9359] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9360] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9362] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9362] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9365] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:12:57 OpenWrt daemon.warn rc: [2025/07/20 21:12:57:9365] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:13:00 OpenWrt daemon.notice rc: [2025/07/20 21:13:00:2624] N: JSON: {"stats":120}
Jul 20 21:13:00 OpenWrt daemon.notice rc: [2025/07/20 21:13:00:6458] N: JSON: {"reqStats":{"start":1753063916,"stop":1753063977,"period":"seconds","clientId":"cpDRu7GBVA2GpYvnH2tV"}}
Jul 20 21:13:05 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:13:22 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:13:33 OpenWrt daemon.alert route-swd: sfp0: set mode to 10gbase_r
Jul 20 21:13:34 OpenWrt daemon.notice netifd: wan26 (20166): cat: write error: Broken pipe
Jul 20 21:13:42 OpenWrt daemon.notice netifd: wan26 (20166): cat: write error: Broken pipe
Jul 20 21:13:49 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:13:55 OpenWrt daemon.warn rc: [2025/07/20 21:13:55:8813] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:13:55 OpenWrt daemon.warn rc: [2025/07/20 21:13:55:8815] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:14:06 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:14:14 OpenWrt daemon.warn rc: [2025/07/20 21:14:14:0687] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:14:14 OpenWrt daemon.warn rc: [2025/07/20 21:14:14:0689] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:14:15 OpenWrt daemon.warn rc: [2025/07/20 21:14:15:9636] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:14:15 OpenWrt daemon.warn rc: [2025/07/20 21:14:15:9637] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:14:21 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:14:37 OpenWrt daemon.alert route-swd: sfp0: set mode to 10gbase_r
Jul 20 21:14:37 OpenWrt daemon.warn rc: [2025/07/20 21:14:37:8215] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:14:37 OpenWrt daemon.warn rc: [2025/07/20 21:14:37:8218] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:14:56 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:14:58 OpenWrt daemon.notice rc: [2025/07/20 21:14:58:9410] N: JSON: {"stats":120}
Jul 20 21:14:59 OpenWrt daemon.notice rc: [2025/07/20 21:14:59:0048] N: JSON: {"reqStats":{"start":1753064034,"stop":1753064095,"period":"seconds","clientId":"BcbfLgaMiqyRccha9DVA"}}
Jul 20 21:15:01 OpenWrt daemon.notice rc: [2025/07/20 21:15:01:8747] N: JSON: {"reqStats":{"start":1753064040,"stop":1753064101,"period":"seconds","clientId":"lvLNz2SBQwEtPvQIGT0X"}}
Jul 20 21:15:09 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:15:22 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:15:36 OpenWrt daemon.alert route-swd: sfp0: set mode to 10gbase_r
Jul 20 21:15:40 OpenWrt daemon.warn rc: [2025/07/20 21:15:40:8209] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:15:40 OpenWrt daemon.warn rc: [2025/07/20 21:15:40:8209] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:15:49 OpenWrt daemon.notice rc: [2025/07/20 21:15:49:6742] N: JSON: {"stats":120}
Jul 20 21:15:49 OpenWrt daemon.alert route-swd: sfp0: set mode to sgmii_fiber
Jul 20 21:15:51 OpenWrt daemon.warn rc: [2025/07/20 21:15:51:7847] W: Open session Bcb
Jul 20 21:15:51 OpenWrt daemon.alert rc: login by root!
Jul 20 21:15:52 OpenWrt daemon.warn rc: [2025/07/20 21:15:52:8274] W: _lws_smd_msg_send: rejecting message on queue depth 40
Jul 20 21:15:52 OpenWrt daemon.warn rc: [2025/07/20 21:15:52:8275] W: _lws_smd_msg_send: rejecting message on queue depth 40
~ # dmesg
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x411fd090]
[ 0.000000] Linux version 5.4.213 (build@jammy) (gcc version 8.4.0 (OpenWrt GCC 8.4.0 0.1-73-ga961c719ff)) #0 SMP PREEMPT Sun Oct 24 09:01:35 2021
[ 0.000000] Machine model: Qualcomm Technologies, Inc. IPQ9574/Alta-Route10
[ 0.000000] On node 0 totalpages: 258048
[ 0.000000] DMA32 zone: 4096 pages used for memmap
[ 0.000000] DMA32 zone: 0 pages reserved
[ 0.000000] DMA32 zone: 258048 pages, LIFO batch:63
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.0
[ 0.000000] percpu: Embedded 24 pages/cpu s60632 r8192 d29480 u98304
[ 0.000000] pcpu-alloc: s60632 r8192 d29480 u98304 alloc=24*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration
[ 0.000000] ARM_SMCCC_ARCH_WORKAROUND_1 missing from firmware
[ 0.000000] CPU features: detected: Spectre-BHB
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 253952
[ 0.000000] Kernel command line: console=ttyMSM0 root=/dev/ram0
[ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 913420K/1032192K available (7294K kernel code, 624K rwdata, 2444K rodata, 88896K init, 391K bss, 118772K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] rcu: Preemptible hierarchical RCU implementation.
[ 0.000000] Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GICv2m: range[mem 0x0b00c000-0x0b00cffc], SPI[640:671]
[ 0.000000] GICv2m: range[mem 0x0b00d000-0x0b00dffc], SPI[672:703]
[ 0.000000] GICv2m: range[mem 0x0b00e000-0x0b00effc], SPI[704:735]
[ 0.000000] arch_timer: cp15 and mmio timer(s) running at 24.00MHz (virt/virt).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000004] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.000306] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.000315] pid_max: default: 32768 minimum: 301
[ 0.000409] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.000419] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes, linear)
[ 0.001355] ASID allocator initialised with 65536 entries
[ 0.001416] rcu: Hierarchical SRCU implementation.
[ 0.002756] MSM Memory Dump base table set up
[ 0.002774] MSM Memory Dump apps data table set up
[ 0.002922] smp: Bringing up secondary CPUs ...
[ 0.004389] Detected VIPT I-cache on CPU1
[ 0.004431] CPU1: Booted secondary processor 0x0000000001 [0x411fd090]
[ 0.006000] Detected VIPT I-cache on CPU2
[ 0.006041] CPU2: Booted secondary processor 0x0000000002 [0x411fd090]
[ 0.007589] Detected VIPT I-cache on CPU3
[ 0.007629] CPU3: Booted secondary processor 0x0000000003 [0x411fd090]
[ 0.007719] smp: Brought up 1 node, 4 CPUs
[ 0.007737] SMP: Total of 4 processors activated.
[ 0.007743] CPU features: detected: 32-bit EL0 Support
[ 0.007748] CPU features: detected: CRC32 instructions
[ 0.007784] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching
[ 0.007789] CPU: All CPU(s) started at EL1
[ 0.007940] alternatives: patching kernel code
[ 0.008549] devtmpfs: initialized
[ 0.017411] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.017426] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.017508] pinctrl core: initialized pinctrl subsystem
[ 0.018253] NET: Registered protocol family 16
[ 0.018551] DMA: preallocated 256 KiB pool for atomic allocations
[ 0.018854] cpuidle: using governor ladder
[ 0.018872] cpuidle: using governor menu
[ 0.018969] NET: Registered protocol family 42
[ 0.019057] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.019936] ramoops: uncorrectable error in header
[ 0.020006] ramoops: uncorrectable error in header
[ 0.020054] ramoops: uncorrectable error in header
[ 0.020108] ramoops: uncorrectable error in header
[ 0.020131] pstore: Registered ramoops as persistent store backend
[ 0.020137] ramoops: using 0x40000@0x41000000, ecc: 16
[ 0.029033] qcom,gcc-ipq9574 1800000.gcc: Registered ipq9574 GCC clock provider
[ 0.037753] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4
[ 0.037941] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2
[ 0.039391] msm_sps_probe: sps:sps is ready
[ 0.059791] qcom,nsscc-ipq9574 39b00000.nsscc: Registered NSS CC clocks
[ 0.060802] pps_core: LinuxPPS API ver. 1 registered
[ 0.060809] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.060823] PTP clock support registered
[ 0.062536] s1: supplied by regulator-dummy
[ 0.062753] Advanced Linux Sound Architecture Driver Initialized.
[ 0.062791] workqueue: max_active 576 requested for napi_workq is out of range, clamping between 1 and 512
[ 0.063267] s2: supplied by regulator-dummy
[ 0.063478] clocksource: Switched to clocksource arch_sys_counter
[ 0.063982] s4: supplied by regulator-dummy
[ 0.064470] thermal_sys: Registered thermal governor 'step_wise'
[ 0.064473] thermal_sys: Registered thermal governor 'user_space'
[ 0.065856] NET: Registered protocol family 2
[ 0.065971] IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear)
[ 0.066714] tcp_listen_portaddr_hash hash table entries: 512 (order: 1, 8192 bytes, linear)
[ 0.066739] TCP established hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.066794] TCP bind hash table entries: 8192 (order: 5, 131072 bytes, linear)
[ 0.066893] TCP: Hash tables configured (established 8192 bind 8192)
[ 0.066955] UDP hash table entries: 512 (order: 2, 16384 bytes, linear)
[ 0.066982] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes, linear)
[ 0.067106] NET: Registered protocol family 1
[ 0.067127] PCI: CLS 0 bytes, default 64
[ 0.319870] hw perfevents: enabled with armv8_cortex_a73 PMU driver, 7 counters available
[ 0.320782] workingset: timestamp_bits=46 max_order=18 bucket_order=0
[ 0.324150] zbud: loaded
[ 0.325149] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.325156] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.338784] Key type asymmetric registered
[ 0.338792] Asymmetric key parser 'x509' registered
[ 0.341411] qcom-qmp-phy 7d000.ssphy: 7d000.ssphy supply vdda-phy not found, using dummy regulator
[ 0.341456] qcom-qmp-phy 7d000.ssphy: 7d000.ssphy supply vdda-pll not found, using dummy regulator
[ 0.341751] qcom-qmp-phy 7d000.ssphy: Registered Qcom-QMP phy
[ 0.342070] qcom-qmp-phy fc000.phy: Registered Qcom-QMP phy
[ 0.342374] qcom-qmp-phy 8c000.phy: Registered Qcom-QMP phy
[ 0.342672] qcom-qmp-phy f4000.phy: Registered Qcom-QMP phy
[ 0.344166] bam-dma-engine 704000.dma: num-channels unspecified in dt
[ 0.344175] bam-dma-engine 704000.dma: num-ees unspecified in dt
[ 0.344814] bam-dma-engine 7884000.dma: qcom,controlled-remotely unspecified
[ 0.346002] global timer is null
[ 0.346138] CPU: IPQ9570, SoC Version: 1.1
[ 0.346143] OEM_ID: 0, PROD_ID: 0
[ 0.346398] msm_rpm_log_probe: OK
[ 0.350456] TZ SMMU State: SMMU Stage2 Enabled
[ 0.350538] TZ Log : Will warn on Access Violation, as paniconaccessviolation is not set
[ 0.351931] 78000.qcom,msm-eud: ttyEUD0 at MMIO 0x0 (irq = 81, base_baud = 0) is a EUD UART
[ 0.352310] License Manager driver registered
[ 0.352535] UBI cores power collapsed successfully
[ 0.352940] msm_serial 78b1000.serial: msm_serial: detected port #0
[ 0.352960] msm_serial 78b1000.serial: uartclk = 1824768
[ 0.352988] 78b1000.serial: ttyMSM0 at MMIO 0x78b1000 (irq = 14, base_baud = 114048) is a MSM
[ 0.352999] msm_serial: console setup on port #0
[ 1.083104] printk: console [ttyMSM0] enabled
[ 1.088012] msm_serial 78b2000.serial: msm_serial: detected port #1
[ 1.092055] msm_serial 78b2000.serial: uartclk = 24000000
[ 1.098140] 78b2000.serial: ttyMSM1 at MMIO 0x78b2000 (irq = 15, base_baud = 1500000) is a MSM
[ 1.103860] msm_serial: driver initialized
[ 1.112419] random: crng init done
[ 1.120900] brd: module loaded
[ 1.123245] loop: module loaded
[ 1.124298] spi_qup 78b5000.spi: IN:block:16, fifo:64, OUT:block:16, fifo:64
[ 1.126265] spi-nor spi0.0: unrecognized JEDEC id bytes: 00 00 00 00 00 00
[ 1.155483] qca-mdio 90000.mdio: CMN clock reset done
[ 1.155516] qca-mdio 90000.mdio: Reset PHY by GPIO 507
[ 1.375670] qca-mdio 90000.mdio: programe EPHY reg 0xc90f018 with 0x320c41
[ 1.375958] qca-mdio 90000.mdio: programe UNIPHY reg 0xc90f014 with 0x1cc5
[ 1.571692] qca-mdio 90000.mdio: qca-mdio driver was registered
[ 1.571889] i2c /dev entries driver
[ 1.581617] qti_scm_restart_reason qti,scm_restart_reason: reset_reason : Power on Reset [0x20]
[ 1.584626] sdhci: Secure Digital Host Controller Interface driver
[ 1.589116] sdhci: Copyright(c) Pierre Ossman
[ 1.595359] sdhci-pltfm: SDHCI platform and OF driver helper
[ 1.600180] sdhci_msm 7804000.sdhci: sdhci_msm_get_ice_device_vops: ICE device is not enabled
[ 1.635520] mmc0: SDHCI controller on 7804000.sdhci [7804000.sdhci] using ADMA 64-bit
[ 1.640510]
[ 1.640510] Version Rollback Feature Disabled
[ 1.645974] qcom-q6v5-wcss-pil cd00000.remoteproc: unable to acquire memory-region
[ 1.648125] remoteproc remoteproc0: releasing cd00000.remoteproc
[ 1.655646] qcom-q6v5-wcss-pil: probe of cd00000.remoteproc failed with error -22
[ 1.662565] coresight-tmc 6047000.etf: invalid cti data
[ 1.669616] coresight-tmc 6048000.tmc: unable to acquire Q6 ETR memory-region
[ 1.676013] coresight coresight-etm0: CPU0: ETM v4.0 initialized
[ 1.681666] coresight-etm4x 6293000.etm: CPU0: (null) initialized
[ 1.687819] coresight coresight-etm1: CPU1: ETM v4.0 initialized
[ 1.693541] coresight-etm4x 6297000.etm: CPU1: (null) initialized
[ 1.699885] coresight coresight-etm2: CPU2: ETM v4.0 initialized
[ 1.705624] coresight-etm4x 629b000.etm: CPU2: (null) initialized
[ 1.711929] coresight coresight-etm3: CPU3: ETM v4.0 initialized
[ 1.717698] coresight-etm4x 629f000.etm: CPU3: (null) initialized
[ 1.724039] coresight-stm 6002000.stm: coresight-stm : stm_register_device failed, probing deferred
[ 1.729844] OF: graph: no port node found in /soc/cti@6291000
[ 1.738752] OF: graph: no port node found in /soc/cti@6295000
[ 1.744683] OF: graph: no port node found in /soc/cti@6299000
[ 1.750372] OF: graph: no port node found in /soc/cti@629d000
[ 1.756293] OF: graph: no port node found in /soc/csr@6001000
[ 1.761758] coresight-csr 6001000.csr: CSR initialized: coresight-csr
[ 1.768965] NET: Registered protocol family 10
[ 1.774515] Segment Routing with IPv6
[ 1.778230] NET: Registered protocol family 17
[ 1.781946] Bridge firewalling registered
[ 1.786298] 8021q: 802.1Q VLAN Support v1.8
[ 1.790589] Key type ._fscrypt registered
[ 1.794356] Key type .fscrypt registered
[ 1.798876] pstore: Using crash dump compression: deflate
[ 1.805158] mmc0: new HS400 Enhanced strobe MMC card at address 0001
[ 1.808187] mmcblk0: mmc0:0001 4FTE4R 3.64 GiB
[ 1.814430] mmcblk0boot0: mmc0:0001 4FTE4R partition 1 4.00 MiB
[ 1.818685] mmcblk0boot1: mmc0:0001 4FTE4R partition 2 4.00 MiB
[ 1.821585] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4
[ 1.824500] mmcblk0rpmb: mmc0:0001 4FTE4R partition 3 512 KiB, chardev (239:0)
[ 1.830394] cpr4_ipq807x_apss_read_fuse_data: apc_corner: speed bin = 0
[ 1.838531] Alternate GPT is invalid, using primary GPT.
[ 1.844836] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR fusing revision = 2
[ 1.844841] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR misc fuse value = 0
[ 1.844872] cpr4_ipq807x_apss_read_fuse_data: apc_corner: Voltage boost fuse config = 0 boost = disable
[ 1.851400] GPT: device [179:27] (rootfs) set to be root filesystem
[ 1.856948] cpr3_mem_acc_init: apc: not using memory accelerator regulator
[ 1.864285] mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14 p15 p16 p17 p18 p19 p20 p21 p22 p23 p24 p25 p26 p27 p28 p29
[ 1.871749] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused SVS: open-loop= 635000 uV
[ 1.871754] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused NOM: open-loop= 752500 uV
[ 1.915670] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused TURBO: open-loop= 837500 uV
[ 1.925479] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused STURBO: open-loop=1012500 uV
[ 1.935316] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused SVS: quot[13]= 658, quot_offset[13]= 0
[ 1.945105] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused NOM: quot[13]= 884, quot_offset[13]= 225
[ 1.955952] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused TURBO: quot[13]=1030, quot_offset[13]= 145
[ 1.966888] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused STURBO: quot[13]=1302, quot_offset[13]= 270
[ 1.978014] cpr3_regulator_init_ctrl: apc: Default CPR mode = closed-loop
[ 1.978532] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2
[ 1.995646] cpr3_mem_acc_init: npu: not using memory accelerator regulator
[ 2.002652] npu_corner: fused NOM: open-loop= 772500 uV
[ 2.009503] npu_corner: fused TURBO: open-loop= 817500 uV
[ 2.015890] core: _opp_supported_by_regulators: OPP minuV: 0 maxuV: 0, not supported by regulator
[ 2.020972] cpu cpu0: _opp_add: OPP not supported by regulators (0)
[ 2.030056] cpufreq: cpufreq_online: CPU0: Running at unlisted freq: 24000 KHz
[ 2.037032] cpufreq: cpufreq_online: CPU0: Unlisted initial frequency changed to: 936000 KHz
[ 2.044352] coresight-tmc 6048000.tmc: unable to acquire Q6 ETR memory-region
[ 2.051693] coresight-tmc 6048000.tmc: invalid cti data
[ 2.058756] sps_register_bam_device: sps:BAM 0x0000000006064000 is registered
[ 2.064008] coresight coresight-stm: STM32 initialized
[ 2.071148] hctosys: unable to open rtc device (rtc0)
[ 2.076403] ALSA device list:
[ 2.081198] No soundcards found.
[ 2.103096] Freeing unused kernel memory: 88896K
[ 2.103131] Run /init as init process
[ 2.398711] init: Console is alive
[ 2.398870] init: - watchdog -
[ 2.405906] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 2.407897] usbcore: registered new interface driver usbfs
[ 2.411671] usbcore: registered new interface driver hub
[ 2.417062] usbcore: registered new device driver usb
[ 2.424536] SCSI subsystem initialized
[ 2.430354] usbcore: registered new interface driver usb-storage
[ 2.431151] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 2.441590] init: - preinit -
[ 2.475339] procd: - early -
[ 2.475363] procd: - watchdog -
[ 2.986017] procd: - watchdog -
[ 2.986218] procd: - ubus -
[ 3.038790] procd: - init -
[ 3.085524] urngd: v1.0.2 started.
[ 3.116806] kmodloader: loading kernel modules from /etc/modules.d/*
[ 3.118122] NET: Registered protocol family 38
[ 3.123972] PPP generic driver version 2.4.2
[ 3.126812] NET: Registered protocol family 24
[ 3.132086] qca_nss_sfe: Unknown symbol ppe_rfs_ipv6_rule_create (err -2)
[ 3.135184] qca_nss_sfe: Unknown symbol ppe_rfs_ipv4_rule_create (err -2)
[ 3.142054] qca_nss_sfe: Unknown symbol ppe_rfs_ipv4_rule_destroy (err -2)
[ 3.148932] qca_nss_sfe: Unknown symbol ppe_rfs_ipv6_rule_destroy (err -2)
[ 3.195574] inspect: module license 'Proprietary' taints kernel.
[ 3.195587] Disabling lock debugging due to kernel taint
[ 3.200696] inspect: Unknown symbol fal_port_shaper_set (err -2)
[ 3.205930] inspect: Unknown symbol fal_fdb_entry_getnext_byindex (err -2)
[ 3.211924] inspect: Unknown symbol fal_port_policer_entry_set (err -2)
[ 3.218624] inspect: Unknown symbol appe_port_rx_cnt_tbl_rx_byte_cnt_get (err -2)
[ 3.225124] inspect: Unknown symbol fal_fdb_entry_getfirst (err -2)
[ 3.232758] inspect: Unknown symbol hppe_port_tx_counter_tbl_reg_tx_bytes_get (err -2)
[ 3.251903] NET: Registered protocol family 15
[ 3.252305] Initializing XFRM netlink socket
[ 3.255755] nat46: module (version 362640b41ae52b732d9e9729e61ac555492442a3) loaded.
[ 3.268808] ssdk_dt_parse_interrupt[810]:INFO:intr-gpio does not exist
[ 3.269159] ssdk_dt_parse_led[1120]:INFO:current dts led_source_num is 12
[ 3.274243] ^^ B dev_id0->miibus=ffffff80376e8800
[ 3.282655] ssdk_phy_driver_init[370]:INFO:dev_id = 0, phy_adress = 6, phy_id = 0x1a241cc7 phytype doesn't match
[ 3.285787] sfp_phy_init[403]:INFO:qca probe sfp phy driver succeeded!
[ 3.305000] qca808x_phy_api_ops_init[2739]:INFO:qca probe qca808x phy driver succeeded!
[ 3.309703] qca808x_ptp_register[1331]:INFO:qca808x phydev 90000.mdio:01 ptp clock registered
[ 3.311864] qca808x_ptp_register[1331]:INFO:qca808x phydev 90000.mdio:02 ptp clock registered
[ 3.320537] qca808x_ptp_register[1331]:INFO:qca808x phydev 90000.mdio:03 ptp clock registered
[ 3.329036] qca808x_ptp_register[1331]:INFO:qca808x phydev 90000.mdio:04 ptp clock registered
[ 3.553358] qca_appe_tdm_hw_init[302]:INFO:appe scheduler tdm mode =1
[ 3.553377] qca_appe_tdm_hw_init[344]:INFO:appe tdm setup num=100
[ 3.809746] qca8084_phy_interface_set_mode[312]:INFO:configure manhattan phy as PORT_UQXGMII
[ 3.875840] ssdk_mht_gcc_clock_init[1345]:INFO:MHT GCC CLK initialization with clock mode 47 on port bmp 0x1e
[ 3.876779] mht_pinctrl_clk_gate_set[329]:INFO:[mht_pinctrl_clk_gate_set] gate_en:1
[ 3.877223] mht_pinctrl_rev_check[347]:INFO:[mht_pinctrl_rev_check] version_id:0x0 mfg_id:0x70 start_bit:0x1
[ 3.884711] mht_pinctrl_rev_check[350]:INFO: Pinctrl Version Check Pass
[ 3.905268] ssdk_mht_pinctrl_init[397]:INFO: ssdk_mht_pinctrl_init done
[ 4.133486] qca_hppe_interface_mode_init[1477]:INFO:appe interface mode initialization
[ 4.772180] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.773066] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.778079] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.784034] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.790016] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.796002] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.802035] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.808032] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.814036] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.819981] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.825962] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.832041] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.837969] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.843971] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.849961] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.855931] ssdk: 4671/4730: ignore autoneg mismatch: 3d751980/0
[ 4.861310] qca_appe_portctrl_hw_init[407]:INFO:appe portctrl initialization
[ 4.869342] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:bc4, ssdk_led_src_id:0
[ 4.874757] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:bc4, ssdk_led_src_id:3
[ 4.882941] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:bc4, ssdk_led_src_id:6
[ 4.891188] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:bc4, ssdk_led_src_id:9
[ 4.899416] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3e4, ssdk_led_src_id:1
[ 4.907035] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3cc, ssdk_led_src_id:2
[ 4.915139] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3e4, ssdk_led_src_id:4
[ 4.923305] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3cc, ssdk_led_src_id:5
[ 4.931358] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3e4, ssdk_led_src_id:7
[ 4.939657] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3cc, ssdk_led_src_id:8
[ 4.947729] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3e4, ssdk_led_src_id:a
[ 4.955916] ssdk_led_init[152]:INFO:ssdk_led_mode:3, ssdk_led_map:3cc, ssdk_led_src_id:b
[ 4.964015] qca_appe_rss_hash_hw_init[595]:INFO:appe rss hash initialization: hash_seed 0x8417a73c
[ 4.970990] regi_init[3939]:INFO:Initializing APPE Done!!
[ 4.979798] regi_init[4007]:INFO:qca-ssdk module init succeeded!
[ 4.986192] tun: Universal TUN/TAP device driver, 1.6
[ 4.991594] gre: GRE over IPv4 demultiplexor driver
[ 4.996625] PPTP driver version 0.8.5
[ 5.056677] xt_ndpi v1.2 ndpi 4.9.0-5256-8a81420 IPv6=YES debug_message=no
[ 5.056677] BT: hash_size 0k, hash_expiation 0 sec, log_size 128kb
[ 5.056677] sizeof hash_ip4p_node=44 flow_struct=1120 packet_struct=1336
[ 5.056677] flow_tcp_struct=108 flow_udp_struct=112 int_one_line_struct=16
[ 5.056677] ndpi_ip_addr_t=16 ndpi_protocol=6 nf_ct_ext_ndpi=240
[ 5.056677] flow_info=112 spinlock_t=4 NF_EXT_ID 7
[ 5.071453] xt_ndpi: MAX_PROTOCOLS 512 LAST_PROTOCOL 418
[ 5.093677] xt_ndpi: flow accounting ON
[ 5.112585] dp1: ppe offload disabled: 1 for macid 1
[ 5.112598] dp1: Switch attached to macid 1 status: 0
[ 5.116642] (unnamed net_device) (uninitialized): netif_napi_add() called with weight 512
[ 5.121927] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x1
[ 5.131650] dp2: ppe offload disabled: 1 for macid 2
[ 5.136512] dp2: Switch attached to macid 2 status: 0
[ 5.141550] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x2
[ 5.148325] dp3: ppe offload disabled: 1 for macid 3
[ 5.153164] dp3: Switch attached to macid 3 status: 0
[ 5.158179] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x3
[ 5.165018] dp4: ppe offload disabled: 1 for macid 4
[ 5.169832] dp4: Switch attached to macid 4 status: 0
[ 5.174845] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x4
[ 5.181635] dp5: ppe offload disabled: 0 for macid 5
[ 5.186518] dp5: Switch attached to macid 5 status: 0
[ 5.191527] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x5
[ 5.196866] dp6: ppe offload disabled: 0 for macid 6
[ 5.203165] dp6: Switch attached to macid 6 status: 0
[ 5.208178] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x6
[ 5.213512] **********************************************************
[ 5.219820] * NSS Data Plane driver
[ 5.226150] **********************************************************
[ 5.232836] l2tp_core: L2TP core driver, V2.0
[ 5.236578] l2tp_netlink: L2TP netlink interface
[ 5.241615] wireguard: WireGuard 1.0.20220627 loaded. See www.wireguard.com for information.
[ 5.245254] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <Jason@zx2c4.com>. All Rights Reserved.
[ 5.255113] ip_gre: GRE over IPv4 tunneling driver
[ 5.264291] ip6_gre: GRE over IPv6 tunneling driver
[ 5.269144] Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011)
[ 5.301893] nss_ppe_lag_register_event[418]:ffffff803b8da000: Bond interface (bond0) is created=0
[ 5.301912] nss_ppe_lag_init[614]:LAG Manager Installed
[ 5.312414] PPE-RULE module loaded successfully
[ 5.316880] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[ 5.321290] GACT probability on
[ 5.324566] Mirror/redirect action on
[ 5.328938] u32 classifier
[ 5.330988] input device check on
[ 5.333611] Actions configured
[ 5.341316] qcom-qusb2-phy 7b000.qusb: 7b000.qusb supply vdda-pll not found, using dummy regulator
[ 5.341360] qcom-qusb2-phy 7b000.qusb: 7b000.qusb supply vdda-phy-dpdm not found, using dummy regulator
[ 5.349751] qcom-qusb2-phy 7b000.qusb: Registered Qcom-QUSB2 phy
[ 5.359850] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 5.365202] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[ 5.371268] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010
[ 5.377993] xhci-hcd xhci-hcd.0.auto: irq 88, io mem 0x08a00000
[ 5.387672] hub 1-0:1.0: USB hub found
[ 5.393292] hub 1-0:1.0: 1 port detected
[ 5.397183] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[ 5.401146] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[ 5.406438] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed
[ 5.414010] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 5.420802] hub 2-0:1.0: USB hub found
[ 5.428837] hub 2-0:1.0: 1 port detected
[ 5.447007] IPsec XFRM device driver
[ 5.455224] xt_time: kernel timezone is -0000
[ 5.459578] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 6.648942] /dev/loop0: recovering journal
[ 6.707992] /dev/loop0: clean, 41/8192 files, 6405/32768 blocks
[ 6.707996]
[ 6.865240] /dev/loop2: recovering journal
[ 6.912135] /dev/loop2: clean, 22/214272 files, 567389/856064 blocks
[ 6.912139]
[ 6.935960] /cfg mount time:
[ 6.952524] EXT4-fs (loop0): mounted filesystem with ordered data mode. Opts: (null)
[ 6.952547] ext4 filesystem being mounted at /cfg supports timestamps until 2038 (0x7fffffff)
[ 6.959466] real 0m 0.02s
[ 6.967741] user 0m 0.00s
[ 6.967741] sys 0m 0.00s
[ 7.048956] EXT4-fs (loop2): mounted filesystem with ordered data mode. Opts: (null)
[ 7.147479] Adding 2097148k swap on /a/swap. Priority:-2 extents:7 across:2326524k SS
[ 7.291601] poe_util
[ 10.817473] Load PoE fw to chip success!
[ 10.817578] real 0m 3.52s
[ 10.817586] user 0m 1.08s
[ 10.817586] sys 0m 0.21s
[ 10.825730] PoE fw version : 0.0
[ 10.833794] Write total power
[ 10.833824] Total power : 40.000 W
[ 10.833824] Power budget : 40.000 W
[ 10.833824] Deliver power : 0.000 W
[ 10.882384] ECM init
[ 10.882413] ECM database jhash random seed: 0xd15aadc3
[ 10.883058] ECM init complete
[ 10.912898] edma_cfg_rx_rps[1591]:EDMA RPS configured to use 3 cores
[ 10.975869] lp5562 0-0030: internal clock used
[ 12.470310] br-lan: port 1(eth0) entered blocking state
[ 12.470315] br-lan: port 1(eth0) entered disabled state
[ 12.470419] nss_ppe_lag_update_slave[131]:ffffff803b073b48: Upper dev is not LAG for dev: eth0
[ 12.470445] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x1
[ 12.470526] device eth0 entered promiscuous mode
[ 12.471268] Set globle Ageing time set to 300 which is same for all bridge
[ 12.472757] br-lan: port 2(eth5) entered blocking state
[ 12.472767] br-lan: port 2(eth5) entered disabled state
[ 12.472863] nss_ppe_lag_update_slave[131]:ffffff803b073b48: Upper dev is not LAG for dev: eth5
[ 12.472888] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x6
[ 12.472968] device eth5 entered promiscuous mode
[ 12.473028] Set globle Ageing time set to 300 which is same for all bridge
[ 13.503491] nss-dp 3a510000.dp5 eth4: PHY Link up speed: 10000
[ 13.503837] IPv6: ADDRCONF(NETDEV_CHANGE): eth4: link becomes ready
[ 14.693199] nss-dp 3a500000.dp1 eth0: PHY Link up speed: 2500
[ 14.870546] nss-dp 3a50c000.dp4 eth3: PHY Link up speed: 1000
[ 14.870737] br-lan: port 1(eth0) entered blocking state
[ 14.870742] br-lan: port 1(eth0) entered forwarding state
[ 14.870854] IPv6: ADDRCONF(NETDEV_CHANGE): eth3: link becomes ready
[ 14.870957] Set globle Ageing time set to 300 which is same for all bridge
[ 14.870984] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready
[ 19.967516] nss-dp 3a510000.dp5 eth4: PHY Link is down
[ 27.101400] nss-dp 3a500000.dp1 eth0: PHY Link is down
[ 27.101866] br-lan: port 1(eth0) entered disabled state
[ 34.303487] nss-dp 3a510000.dp5 eth4: PHY Link up speed: 10000
[ 58.108900] nf_conntrack: default automatic helper assignment has been turned off for security reasons and CT-based firewall rule not found. Use the iptables CT target to attach helpers instead.
[ 58.108902] nf_conntrack: default automatic helper assignment has been turned off for security reasons and CT-based firewall rule not found. Use the iptables CT target to attach helpers instead.
[ 58.108904] nf_conntrack: default automatic helper assignment has been turned off for security reasons and CT-based firewall rule not found. Use the iptables CT target to attach helpers instead.
[ 1848.743500] nss-dp 3a500000.dp1 eth0: PHY Link up speed: 2500
[ 1848.743907] br-lan: port 1(eth0) entered blocking state
[ 1848.743913] br-lan: port 1(eth0) entered forwarding state
[ 1848.744059] Set globle Ageing time set to 300 which is same for all bridge
[12431.573691] perf: interrupt took too long (4155 > 2500), lowering kernel.perf_event_max_sample_rate to 48000
[14015.598676] perf: interrupt took too long (7396 > 5193), lowering kernel.perf_event_max_sample_rate to 27000
~ #
Seems like there is some excess logging going on (in /var/log/messages/) and possibly going wrong…that might also be the reason for those additional 20-25 % CPU usage!? I don’t see any of those on my Route10. The reason for the message flooding, I don’t know, however.
My gut reaction to these is the router is getting upset over whatever might be connected to WAN2 (the SFP+ port) and it’s going wild logging things. But that’s just my initial reaction when looking over these logs, assuming I’m properly understanding the layout based on them.
What exactly is connected to the router at this site? You mentioned it was only a few things but a little description of the layout or diagram might be a helpful next step
1 Like
this is where it starts to get complicated…
If you do not mind taking the time to read, here a generic description of my setup:
let me know what questions you have.
Yeah, that does get a little more complicated and yeah, I remember that thread a bit now
I’ll look it over and see if anything sticks out to me, but my instinct here is definitely to try and simplify the setup one piece at the time and see where the problem goes.
what does this mean?
