River House Install

:satellite_antenna: Project Overview: Starlink + Route10 + AP6 Mesh for Long-Range Coverage

Just wrapped up a fun and challenging install for a long floorplan home with some unique coverage needs. Here’s the setup:

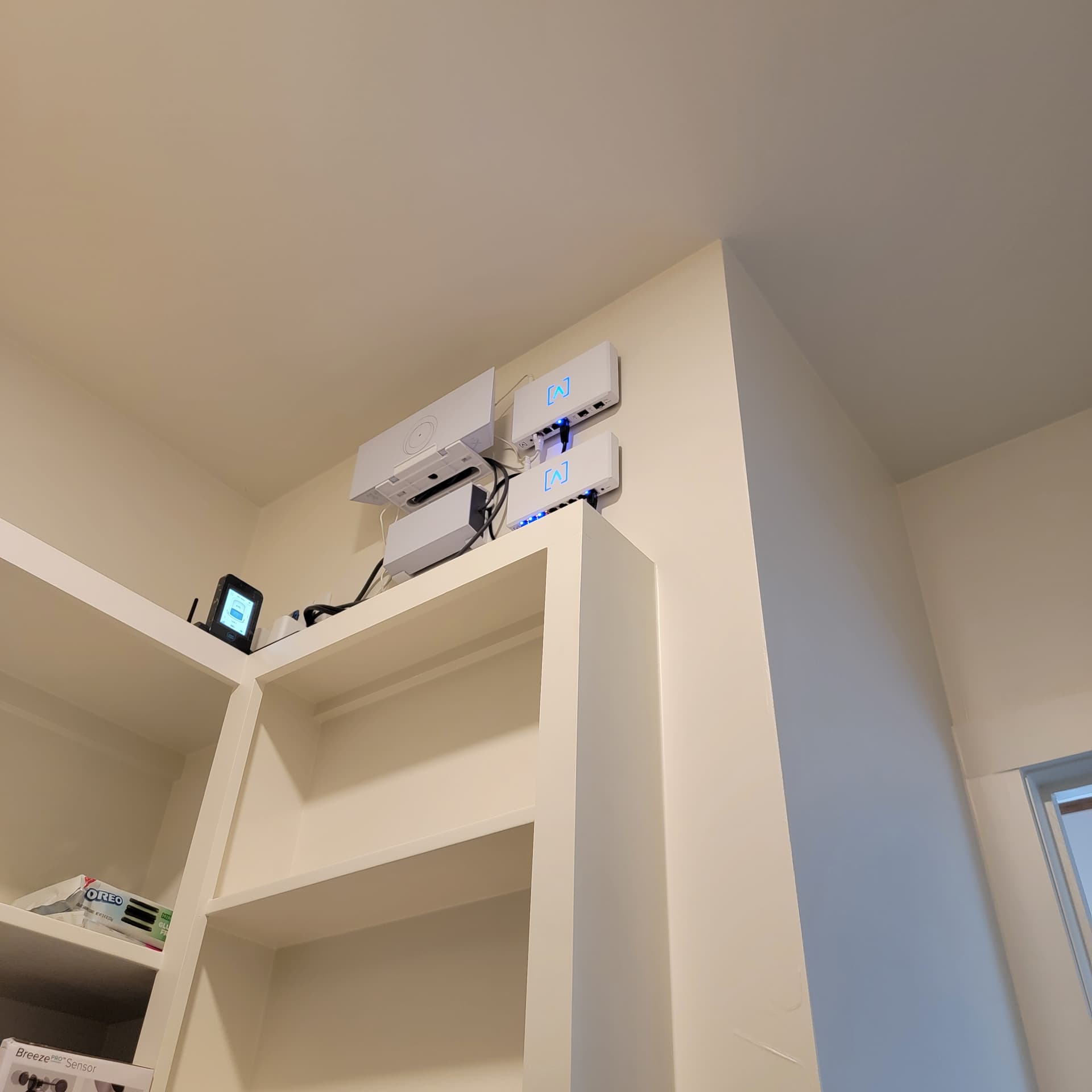

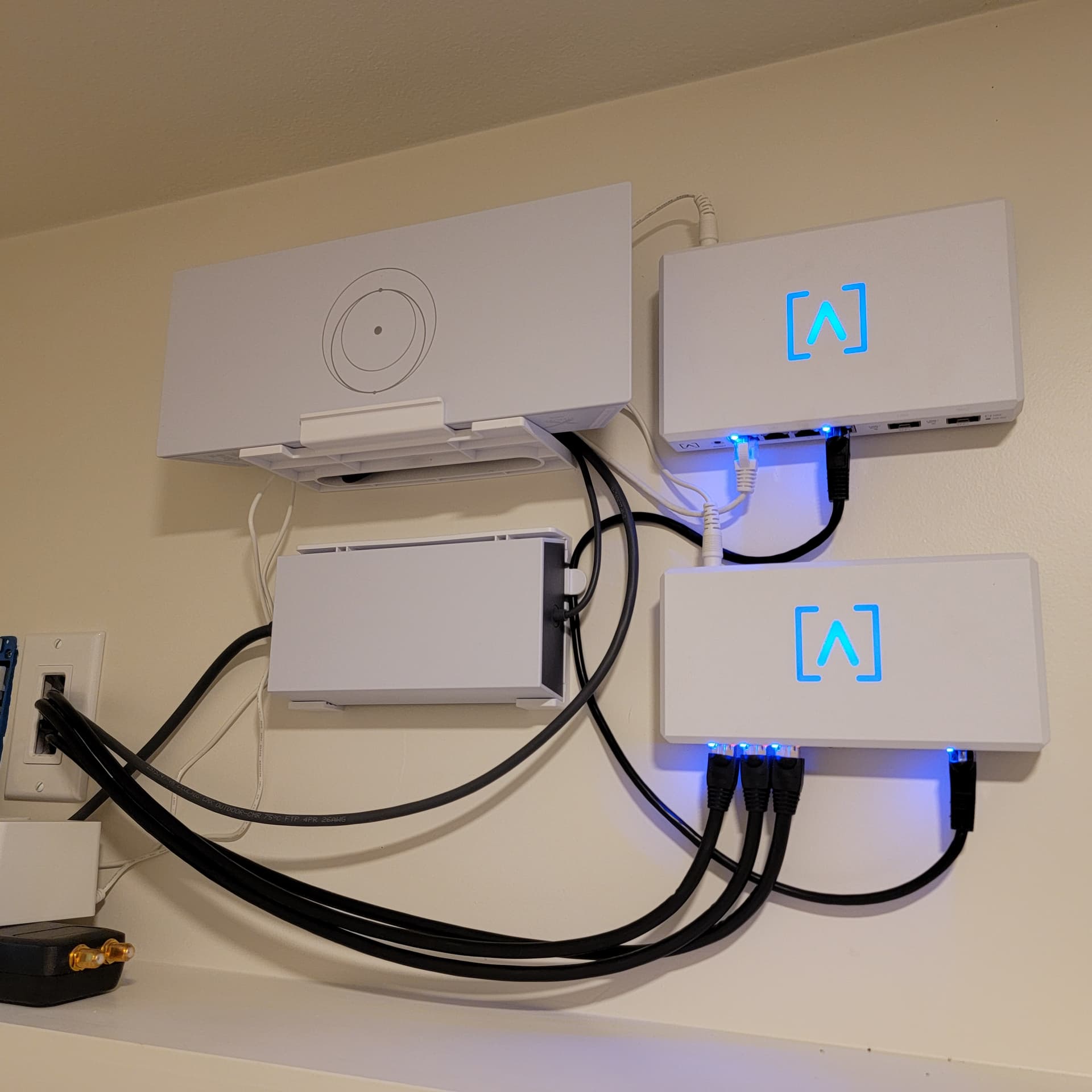

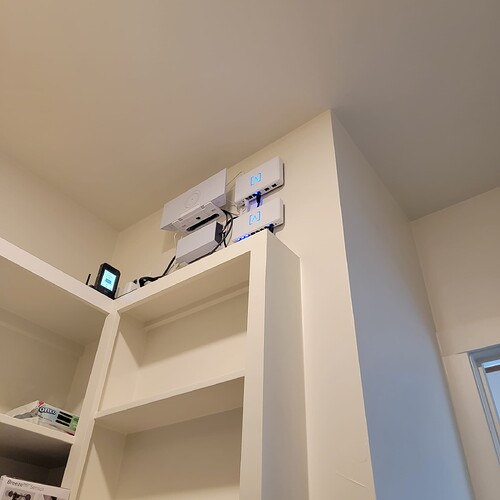

:toolbox: Equipment List:

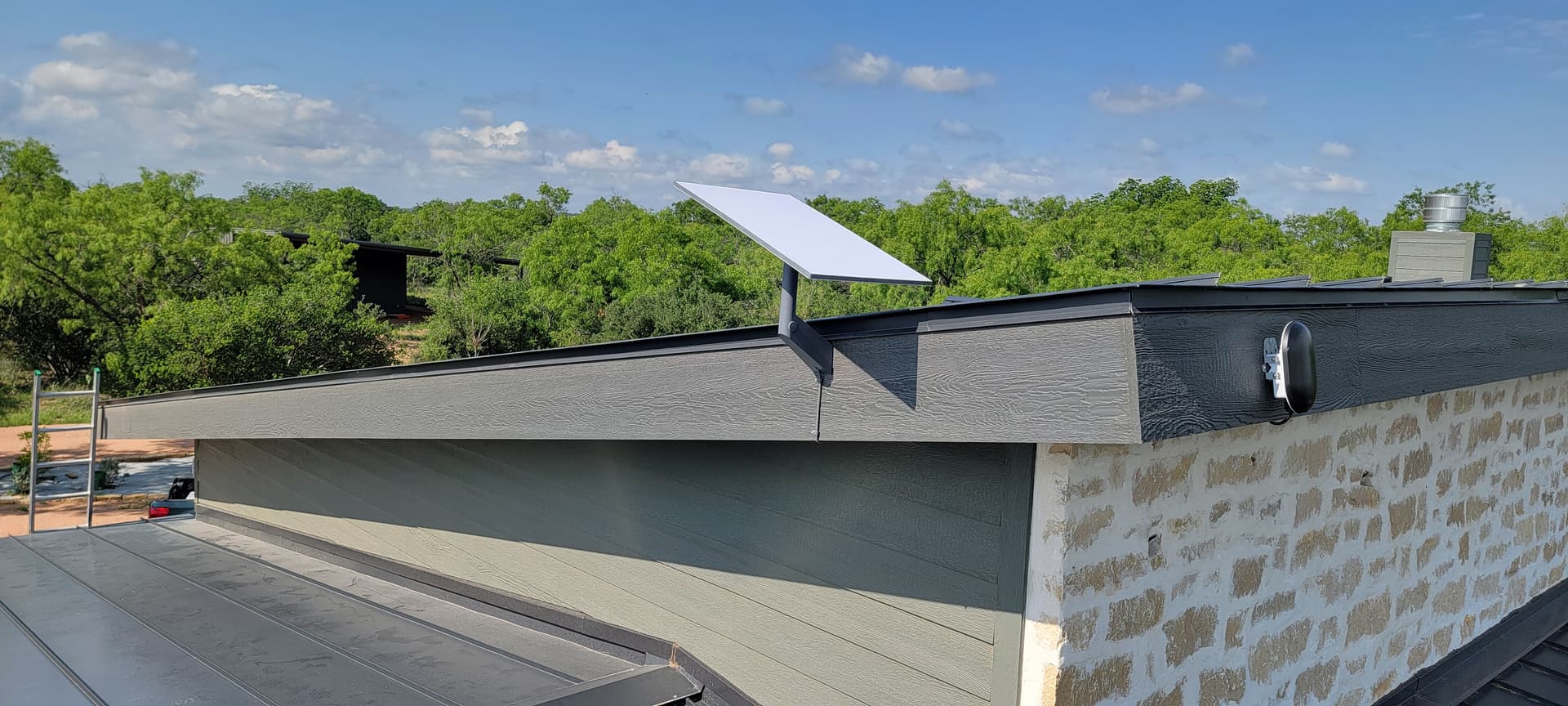

  • Starlink (primary internet source)
  • Route10 (router)
  • S8-POE (PoE switch)
  • 2x AP6-PRO (indoor access points)
  • 3x AP6-PRO Outdoor (outdoor access points)

:house: Site Layout:

  • The house has two wings separated by a large vaulted living/dining/kitchen area.
  • A workshop sits about 300 ft to the south.
  • A river lies about 300 ft to the north.

:antenna_bars: Deployment Strategy:

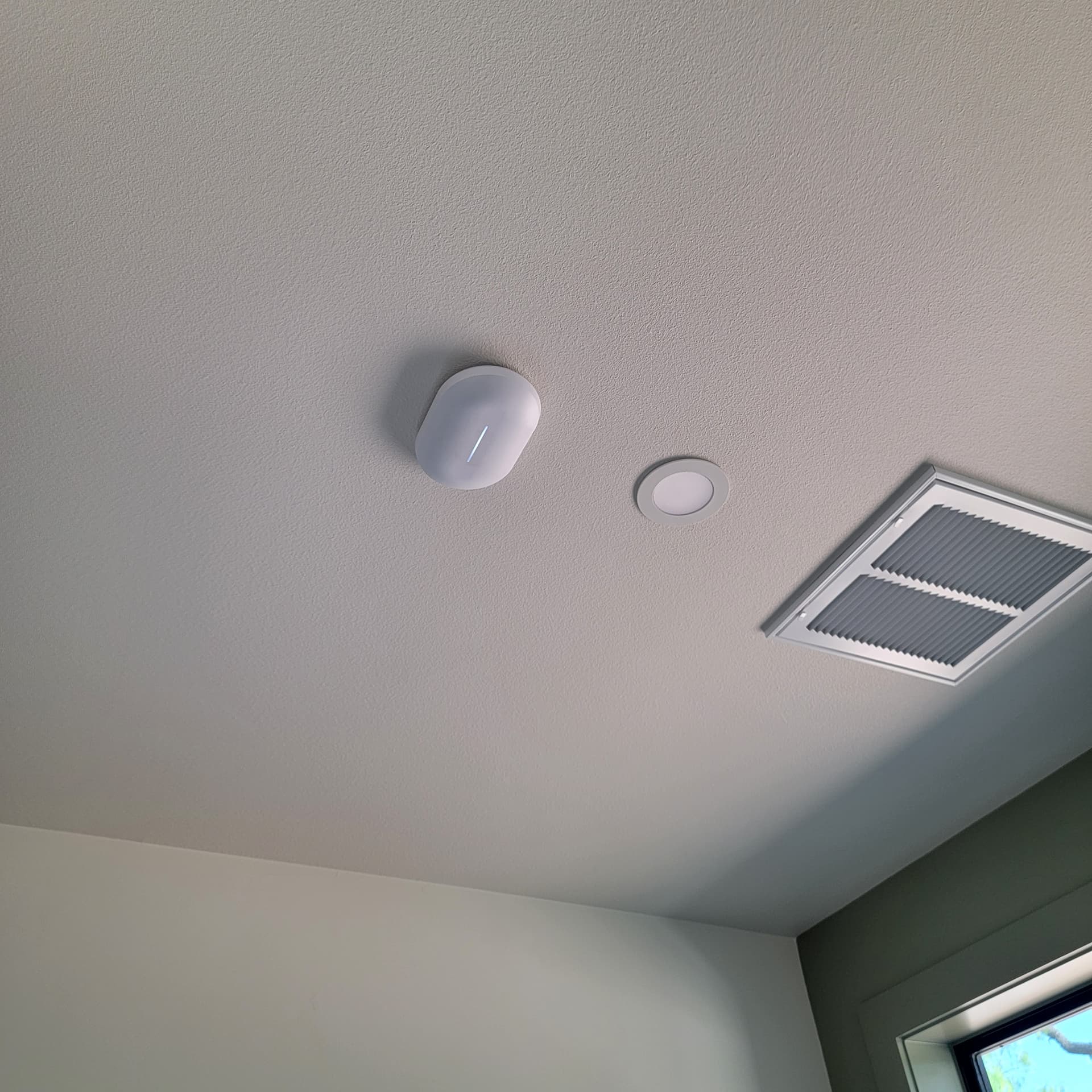

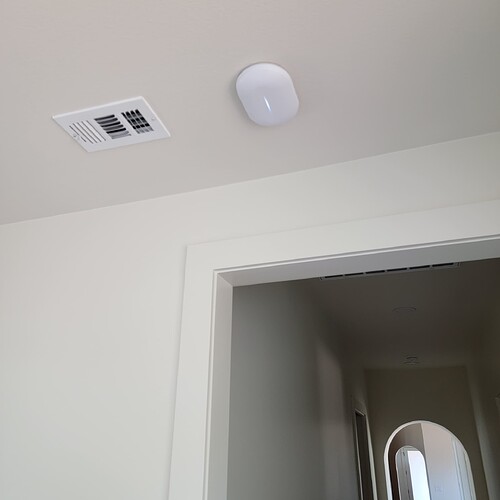

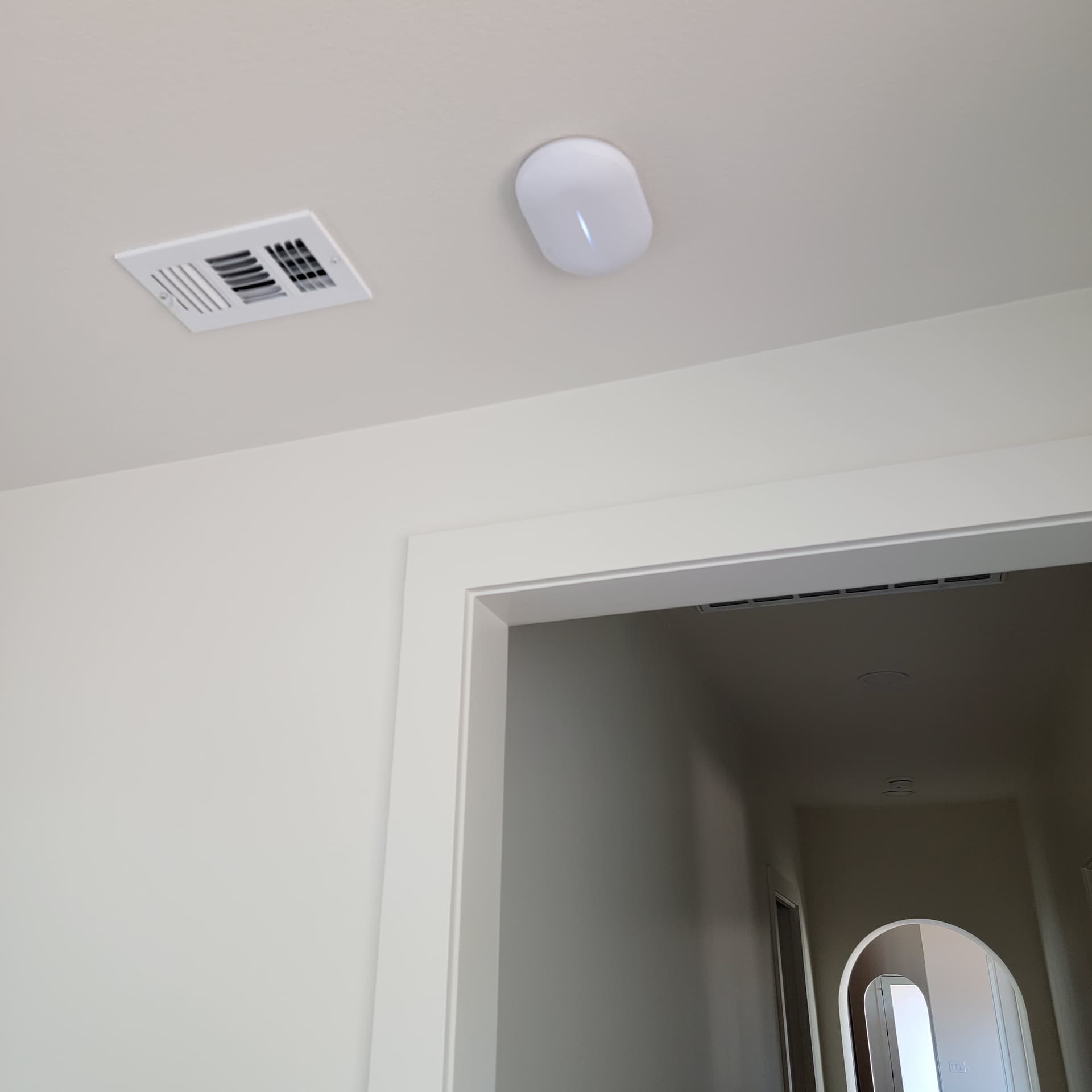

  • Two AP6-PROs cover the interior of the house. Due to the builder not provisioning a cable path between wings, one AP is meshed.

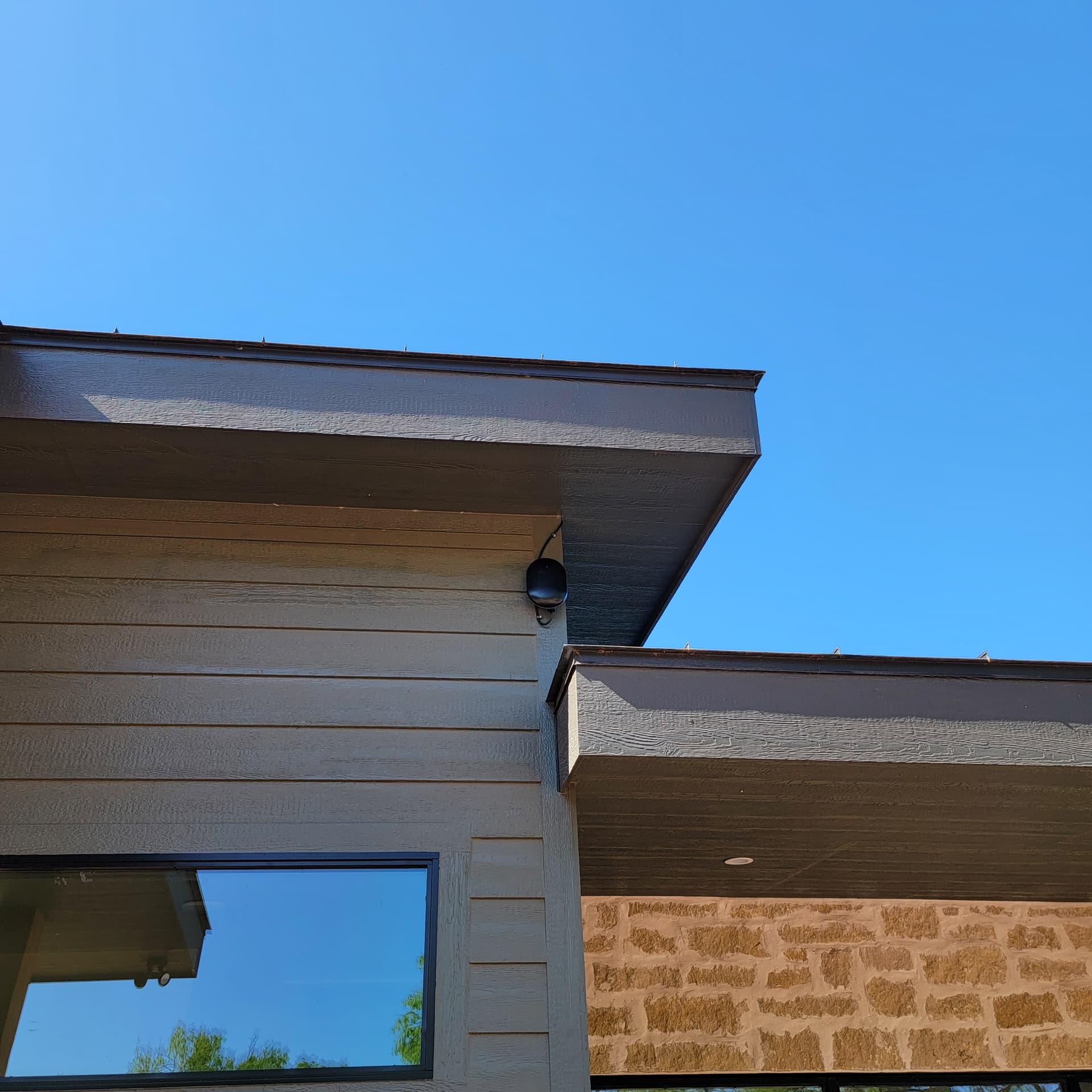

  • One AP6-PRO Outdoor is mounted on the front eave, and another on the rear eave, providing strong coverage all the way to the river.
  • The third AP6-PRO Outdoor is mounted on the workshop, extending the network 300 ft south.

:man_walking: Real-World Performance:

I tested the setup by starting 4K video streams on my laptop, my phone, the homeowner’s phone, then we walked from the workshop, through the house, and down to the rivernot a single buffer. Seamless handoff and rock-solid performance throughout.
