Question before buying a Route10

[ebarranco]

Hi, I am thinking about buying a router 10, but I would like to know a few things that I could not find the answer online first.

1. Does the router support IEEE 802.3ad (now IEEE 802.1AX) dynamic link aggregation on the 2 wan ports?

2. I use DHCP to handout static IP based on MAC address. Is this supported? The small business has around 180 devices. Can I upload some sort of CSV with MAC,IP,mDNS_name to configure these static IPs?

3. MAC address cloning for WAN. We have a static IP from our ISP, but it is attached to a MAC address. We want to set a custom MAC on the WAN ports, is this supported?

Thanks!

[ebuckland81]

2. DHCP management

Bulk entries are available. See online help article.

https://help.alta.inc/hc/en-us/articles/35073566347803-How-to-Reserve-DHCP-by-MAC

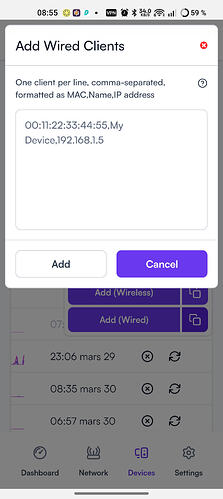

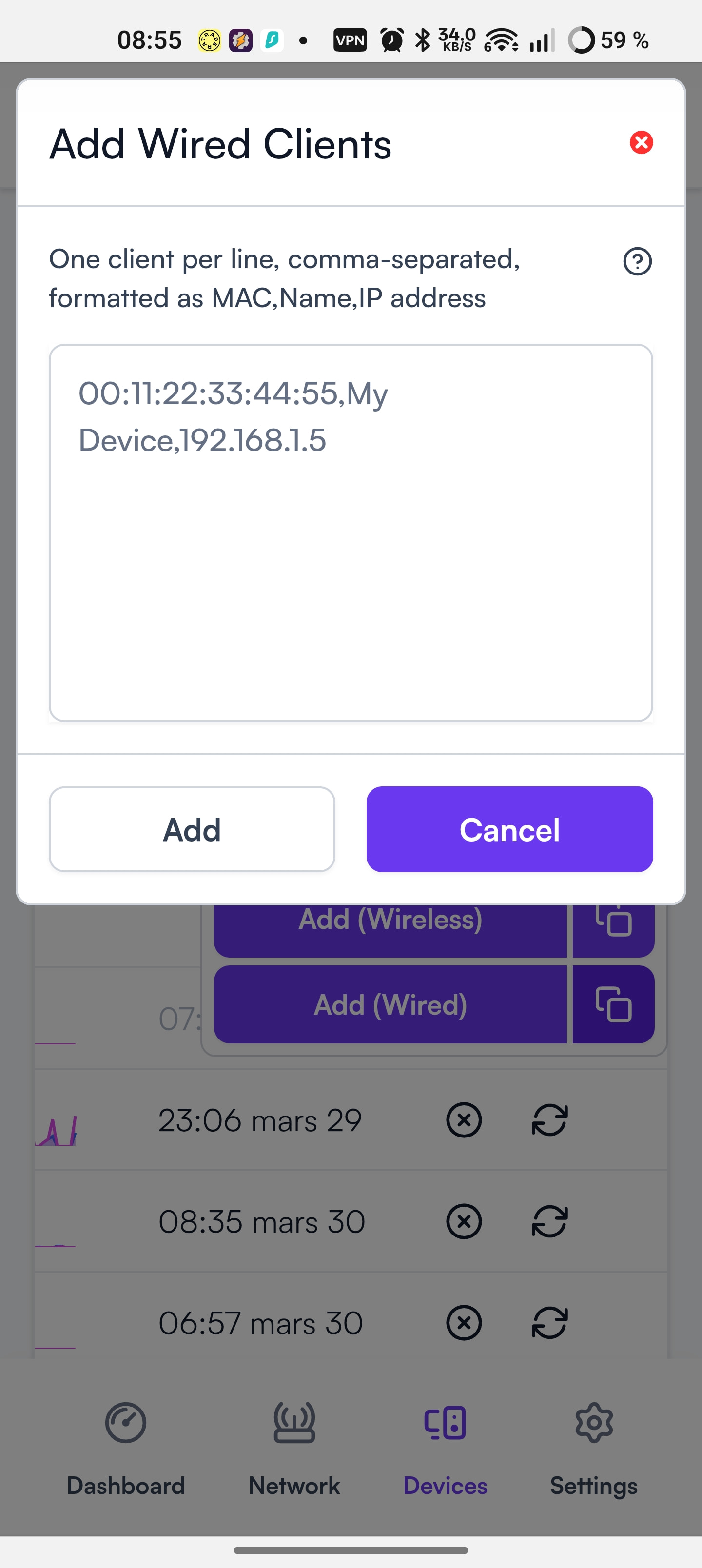

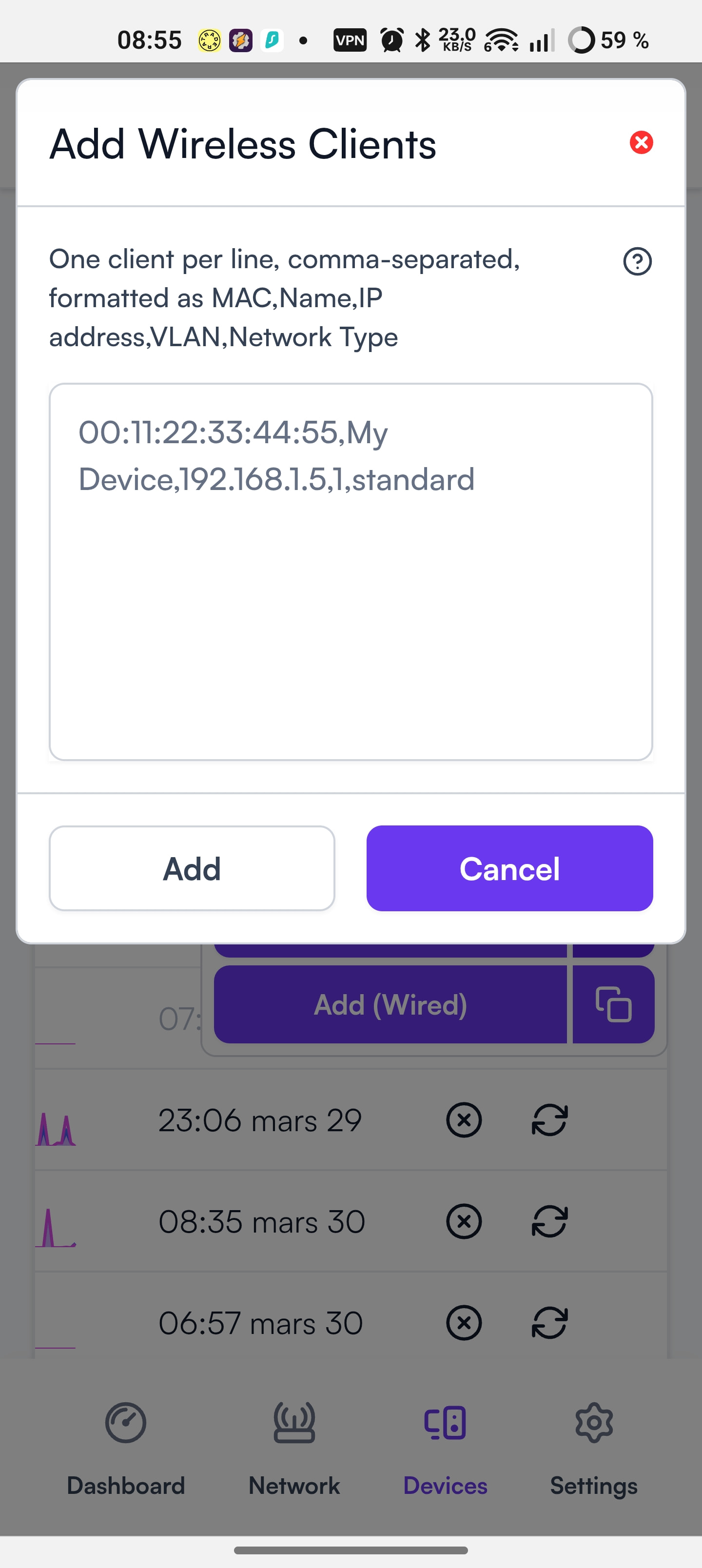

and attached screenshots of bulk add via Devices in Cloud UI.

In addition, there are some requests and discussions targeting further enhancements already, of which one can be found here

FR: Manage all DHCP reservations in one screen

I would like to be able to see all my DHCP reservations in one place. Right now I have to go into each device one-by-one. If I do not know which devices have DHCP reservations it makes it even more cumbersome. Ideally I should also be able to create DHCP reservation from this screen.

3. MAC Clone:

Should be available. See online help article.

https://help.alta.inc/hc/en-us/articles/33805681985435-Route10-Initial-Setup

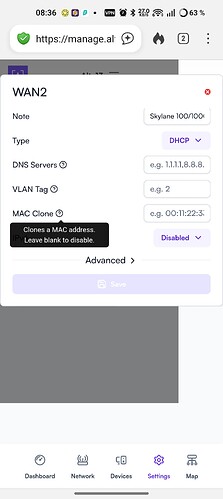

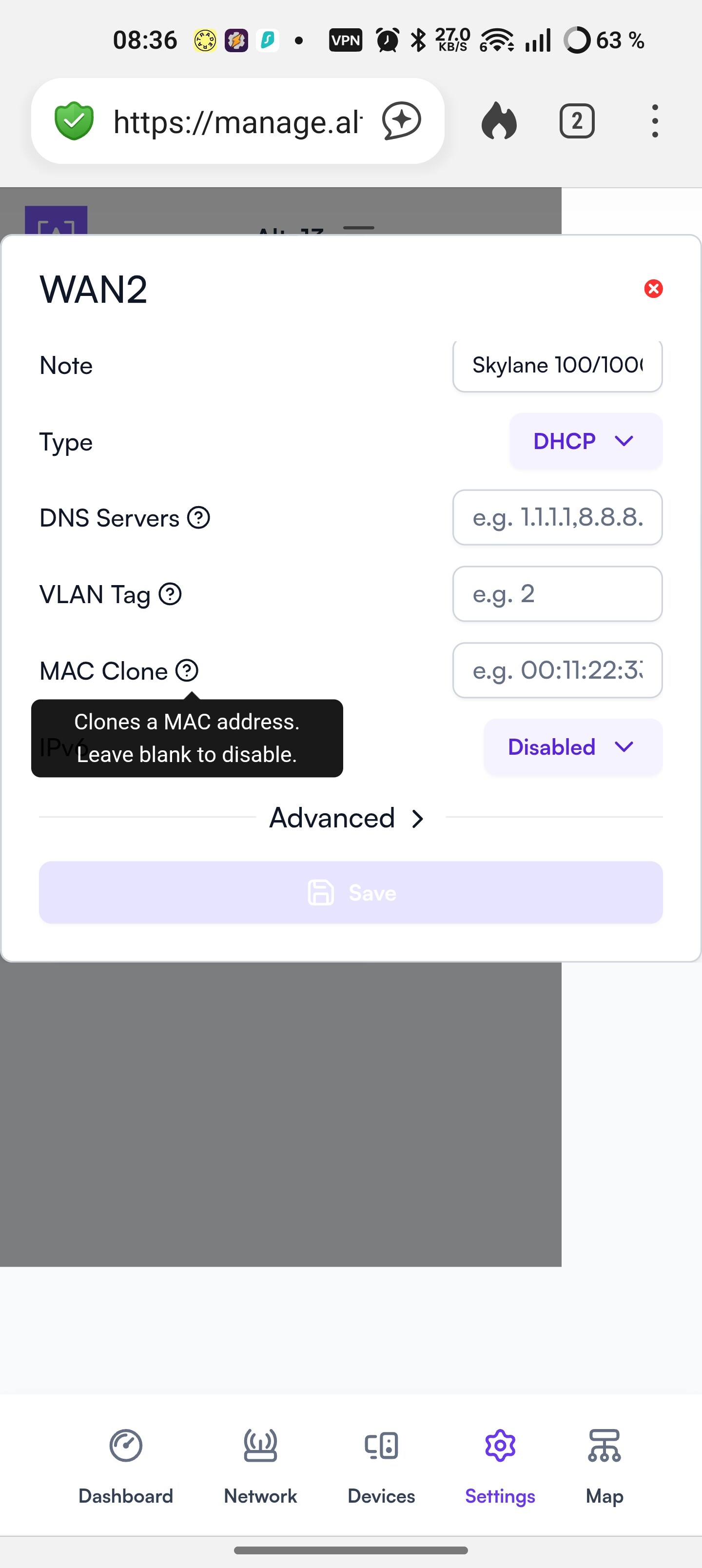

and screenshot of WAN config for Route10 viu Cloud UI.

[Alta-cmb]

1. Link aggregation is not yet supported, but is on the near-future road map.
2. This is available as the previous reply noted.
3. This is available.

[Hanz]

I’m waiting with bated breath for link aggregation!! I have 2 10G DAC cables connected to my core switch. One of them is off for now with anticipation…. It’s the only additional feature I need on Route 10!
