Manage devices at remote site over VPN

Alta Control
1

Any tips or tricks to get a local controller to manage switches and APs at a remote site over a VPN (not using Route10) ?

2

When you set up the controller, you were provided 2 DDNS hostnames; one beginning with “local.”

Provided the subnet for the IP that the hostname beginning with “local.” is reachable over the VPN tunnel (and TCP port 443 isn’t blocked in the process), you should be able to provide that hostname to Alta devices and they’ll communicate over the tunnel.

1 Like
3

I would expect it to be that simple but it has not been my experience so far. I enter the local. address in the AP however it never connects to the on-prem controller at the remote site. All traffic is allowed and DNS resolves correctly, however it never connects and has to be factory reset to re-join the cloud controller.

4

From that side of the link, can you access the controller with the hostname that starts with “local.” from a computer?

5

From the AP I can ping the local. address and hit the controller’s page with wget

6

Did you use http://local. or https://local.?

7

https

8

Can you DM me the link that you’re pasting into the device? Emphasis on DM for security purposes.

9

That URL is good, that’s really weird given you’re able to curl the URL from the AP. What VPN protocol is in use? Maybe it’s MTU related or something like that.

10

The VPN tunnel is running wireguard via two Firewalla devices in a site-to-site configuration

11

Rapidly running out of ideas. What are the 2 subnets in play at both sides?

12

Subnets are different and non-overlapping /24’s on each side

13

Well, in that case, it’s time to call in the big guns. @Alta-Jeff do you have any insights that might explain why an Alta device won’t talk to a local controller over a VPN tunnel despite being accessible by all accounts, specifically WireGuard S2S (non-Alta if it matters)?

14

I’d have to look at device and controller logs, to know what’s going on, but the first thing I would do is ssh to the device and see if you can hit https://local…ddns.manage.alta.inc/api/status (with and without the local prefix).

15
root@<removed>:~# wget https://local.<removed>.ddns.manage.alta.inc/api/status
Downloading 'https://local.<removed>.ddns.manage.alta.inc/api/status'
Connecting to 192.168.<removed>:443
Writing to 'status'
status               100% |*******************************|    11   0:00:00 ETA
Download completed (11 bytes)

root@<removed>:~# vi status
{"ok":true}
16

Looks like you’re able to reach via local, at least. Can you try this on the AP/switch/router:

  1. /etc/init.d/rc stop
  2. echo https://.ddns.manage.alta.inc >/cfg/domain.txt (yes, without the local; rc will automatically detect whether the local prefix is necessary)
  3. rm /cfg/rcapi.txt
  4. /etc/init.d/rc start

The AP/switch/router should then be able to be controlled by that controller.

17

Performed those steps on the AP. Now the device is showing ‘disconnected’ on the Cloud Controller and is not showing up as a device to add on the Local Controller.

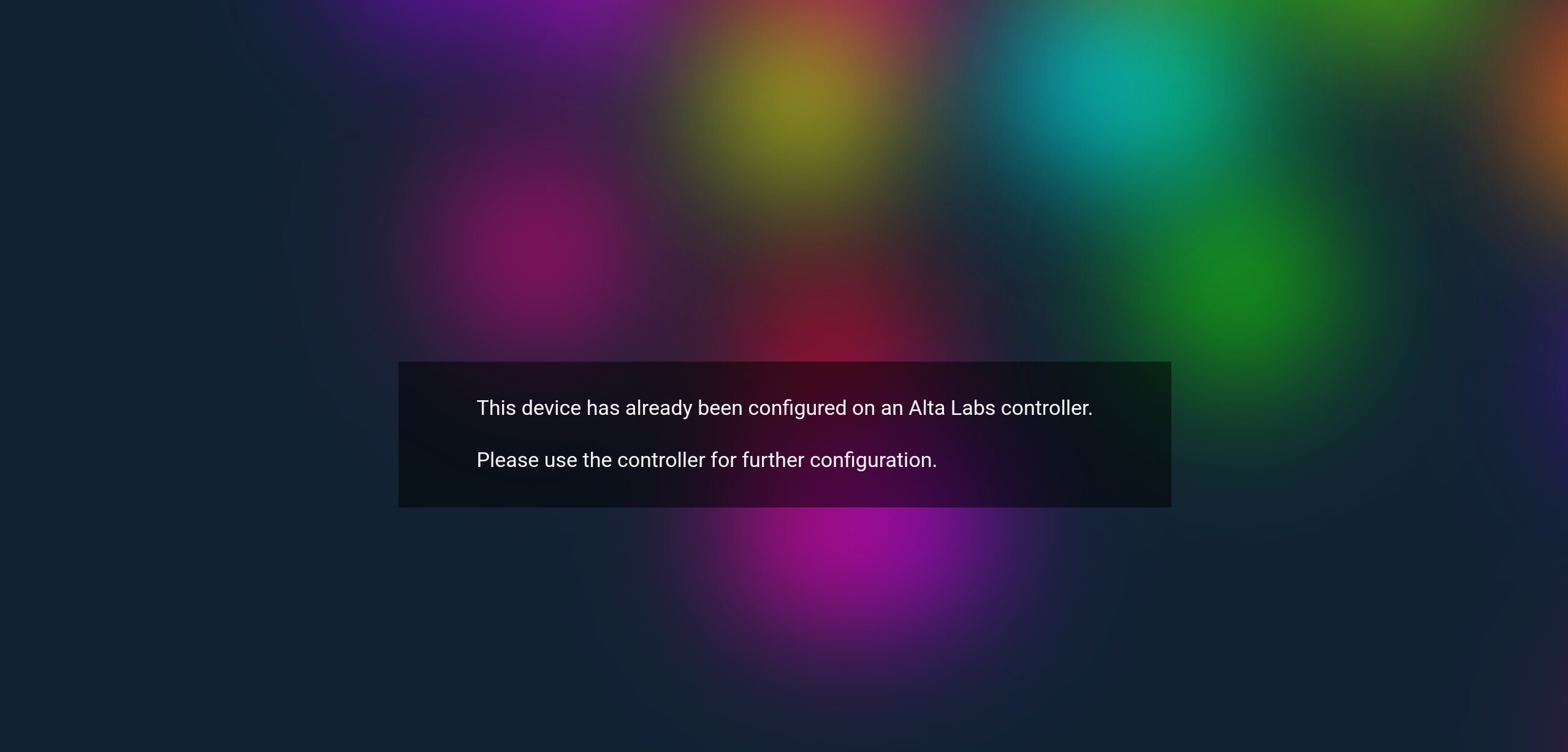

Browsing to it’s IP shows this message:

1000005301
10000053012558×1227 115 KB

18

Can you share the controller logs by running journalctl on the controller as root? Would be best in a DM, if possible (or gdrive link, etc.)
