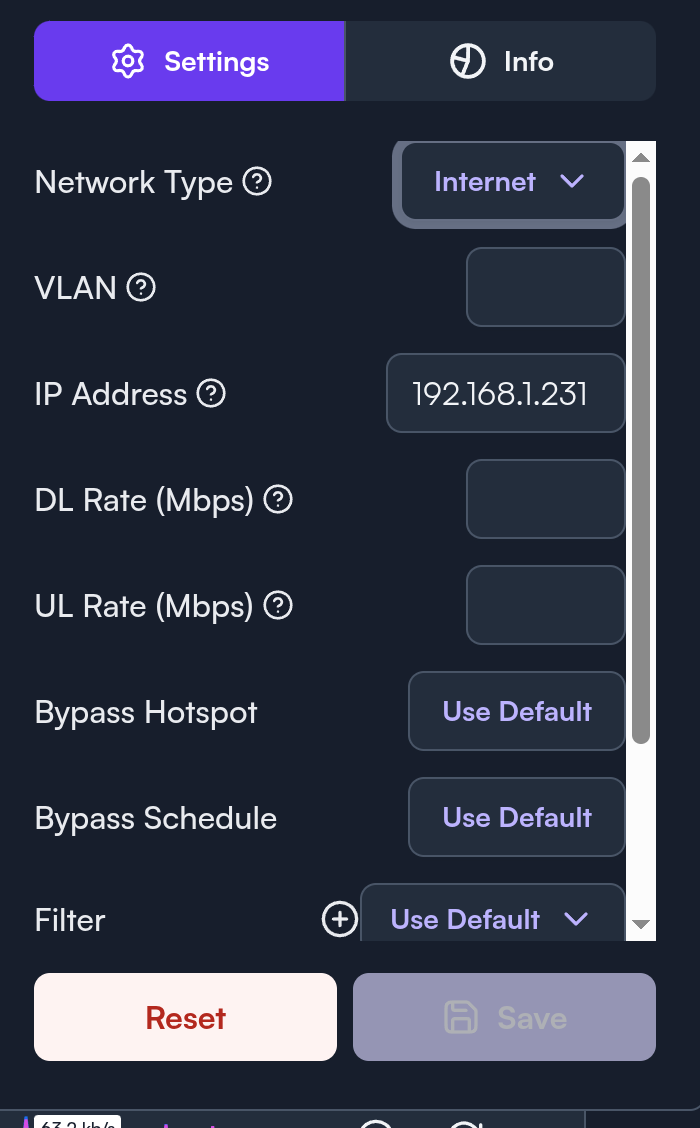

“Internet only” mode doesn’t seem to work as expected, I’ve set some devices in my home that I need internet only access (i.e. no local network) it seems like those devices are still able to access the local network. I’ve set my phone to “Internet” mode (and reconnect wifi) yet I can still access the local services via IP, This is true with other devices that were set to this mode as well
Do you only use the APs, or do you also use the Route 10 router?
I think you need to use the router to take advantage of this feature; it’s the router that routes traffic between the different segments. If, on the other hand, you want to isolate Wi-Fi devices within the same network segment, you need to enable isolation, but this applies to the entire SSID.
My home is fully Alta labs currently, no switches, or anything in between , I have a Route 10, AP6, and AP6 Pro
Good, but all the devices are in the same subnet?
Most devices are in the main vLAN 192.168.1.xxx subnet, I also have a second vLAN that’s under 192.168.2.xxx that I created with isolation
I did a quick little test from a laptop by switching the network type back and forth while pinging another device and it seeemed to work as expected. Dropping pings to a local IP address when switched over to the Internet type. Same from an iPhone, although I don’t have a screenshot of that at the moment.
The ping below shows when the connectivity stops and then resumed as the network types were switched. Think it would be possible to try something similar on your network as a test just to confirm the behavior? I guess I’m curious if it’s not working across the board or just with certain devices
PING 192.168.10.101 (192.168.10.101): 56 data bytes
64 bytes from 192.168.10.101: icmp_seq=0 ttl=128 time=18.830 ms
64 bytes from 192.168.10.101: icmp_seq=1 ttl=128 time=13.624 ms
64 bytes from 192.168.10.101: icmp_seq=2 ttl=128 time=6.153 ms
64 bytes from 192.168.10.101: icmp_seq=3 ttl=128 time=11.923 ms
64 bytes from 192.168.10.101: icmp_seq=4 ttl=128 time=13.159 ms
64 bytes from 192.168.10.101: icmp_seq=5 ttl=128 time=5.768 ms
64 bytes from 192.168.10.101: icmp_seq=6 ttl=128 time=12.578 ms
64 bytes from 192.168.10.101: icmp_seq=7 ttl=128 time=6.324 ms
64 bytes from 192.168.10.101: icmp_seq=8 ttl=128 time=5.325 ms
64 bytes from 192.168.10.101: icmp_seq=9 ttl=128 time=4.332 ms
64 bytes from 192.168.10.101: icmp_seq=10 ttl=128 time=5.267 ms
64 bytes from 192.168.10.101: icmp_seq=11 ttl=128 time=5.792 ms
64 bytes from 192.168.10.101: icmp_seq=12 ttl=128 time=5.157 ms
64 bytes from 192.168.10.101: icmp_seq=13 ttl=128 time=11.478 ms
64 bytes from 192.168.10.101: icmp_seq=14 ttl=128 time=5.217 ms
64 bytes from 192.168.10.101: icmp_seq=15 ttl=128 time=5.384 ms
64 bytes from 192.168.10.101: icmp_seq=16 ttl=128 time=5.134 ms
64 bytes from 192.168.10.101: icmp_seq=17 ttl=128 time=5.424 ms
64 bytes from 192.168.10.101: icmp_seq=18 ttl=128 time=5.173 ms
64 bytes from 192.168.10.101: icmp_seq=19 ttl=128 time=4.660 ms
64 bytes from 192.168.10.101: icmp_seq=20 ttl=128 time=4.827 ms
64 bytes from 192.168.10.101: icmp_seq=21 ttl=128 time=5.021 ms
64 bytes from 192.168.10.101: icmp_seq=22 ttl=128 time=5.080 ms
64 bytes from 192.168.10.101: icmp_seq=23 ttl=128 time=4.913 ms
64 bytes from 192.168.10.101: icmp_seq=24 ttl=128 time=5.170 ms
64 bytes from 192.168.10.101: icmp_seq=25 ttl=128 time=4.523 ms
64 bytes from 192.168.10.101: icmp_seq=26 ttl=128 time=4.986 ms
64 bytes from 192.168.10.101: icmp_seq=27 ttl=128 time=5.044 ms
64 bytes from 192.168.10.101: icmp_seq=28 ttl=128 time=5.208 ms
64 bytes from 192.168.10.101: icmp_seq=29 ttl=128 time=5.577 ms
64 bytes from 192.168.10.101: icmp_seq=30 ttl=128 time=5.122 ms
Request timeout for icmp_seq 31
Request timeout for icmp_seq 32
Request timeout for icmp_seq 33
Request timeout for icmp_seq 34
Request timeout for icmp_seq 35
Request timeout for icmp_seq 36
Request timeout for icmp_seq 37
Request timeout for icmp_seq 38
Request timeout for icmp_seq 39
Request timeout for icmp_seq 40
Request timeout for icmp_seq 41
Request timeout for icmp_seq 42
Request timeout for icmp_seq 43
Request timeout for icmp_seq 44
Request timeout for icmp_seq 45
ping: sendto: No route to host
Request timeout for icmp_seq 46
ping: sendto: No route to host
Request timeout for icmp_seq 47
ping: sendto: No route to host
Request timeout for icmp_seq 48
ping: sendto: No route to host
Request timeout for icmp_seq 49
ping: sendto: No route to host
Request timeout for icmp_seq 50
ping: sendto: No route to host
Request timeout for icmp_seq 51
ping: sendto: No route to host
Request timeout for icmp_seq 52
ping: sendto: No route to host
Request timeout for icmp_seq 53
ping: sendto: No route to host
Request timeout for icmp_seq 54
Request timeout for icmp_seq 55
64 bytes from 192.168.10.101: icmp_seq=56 ttl=128 time=16.702 ms
64 bytes from 192.168.10.101: icmp_seq=57 ttl=128 time=5.041 ms
64 bytes from 192.168.10.101: icmp_seq=58 ttl=128 time=4.420 ms
64 bytes from 192.168.10.101: icmp_seq=59 ttl=128 time=4.731 ms
64 bytes from 192.168.10.101: icmp_seq=60 ttl=128 time=6.216 ms
64 bytes from 192.168.10.101: icmp_seq=61 ttl=128 time=4.737 ms
64 bytes from 192.168.10.101: icmp_seq=62 ttl=128 time=5.563 ms
64 bytes from 192.168.10.101: icmp_seq=63 ttl=128 time=5.084 ms
